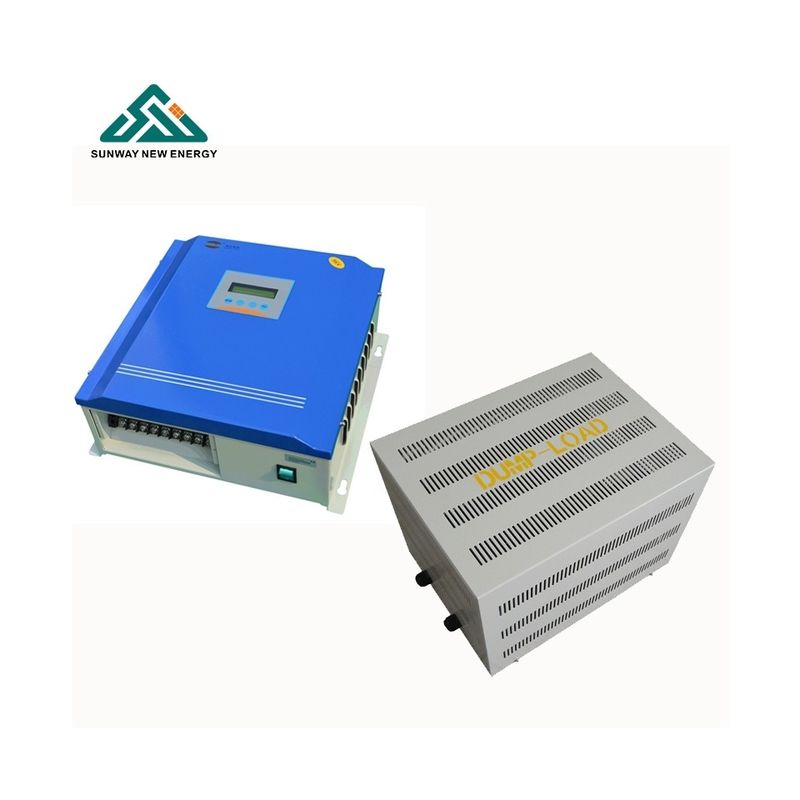

Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines

جزئیات محصول:

Place of Origin: Anhui, China
نام تجاری: SUNEVER
Model Number: SWC-50TA

پرداخت:

قیمت: $285.00/pieces 1-9 pieces
Packaging Details: carton box<br>Wholesale 1kw 2kw 3kw 24v 48v 96v mppt wind and solar hybrid wind generator charge controller
Supply Ability: 600 Piece/Pieces per Month
بهترین قیمت مخاطب

اطلاعات تکمیلی
Application: Wind Controller,wind Solar hybrid energy Maximum current: 60A
Warranty: 3 Years Display: LCD
Weight: 8kg Type: MPPT
برجسته کردن:

Grid-Tied solar wind hybrid controller,3KW 5KW wind turbine controller,Grid-Connected wind solar system controller

,

3KW 5KW wind turbine controller

,

Grid-Connected wind solar system controller

توضیحات محصول

  1. Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines

Product instruction

A grid-tied wind turbine controller (also known as a grid-connected wind power controller) is a critical core component in grid-integrated wind energy systems. It serves as the "brain" that regulates, conditions, and synchronizes electrical energy generated by wind turbines with the public power grid, ensuring safe, efficient, and stable power transmission.
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 0
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 1

FEATURES:

1. Electrical Connection & Structural Design

  • Features a common positive polarity wiring configuration, supporting dual-line connections for solar array installations.
  • Incorporates a digital design paired with a modular architecture, which enhances the system’s overall stability and operational reliability.

2. Intelligent Control & Display Capabilities

  • Wind turbine braking parameters can be programmed directly via the user-friendly key interface.
  • Equipped with a backlit LCD display that provides real-time visibility of the system’s operating parameters.
  • Utilizes PWM charging technology to achieve high energy conversion efficiency, optimizing power utilization.

3. Comprehensive Protection & Auxiliary Systems

  • Integrates multiple protection functions, including reverse connection protection, nighttime anti-reverse charging, battery overcharge protection, and charging current/voltage limitation.
  • Allows for personalized configuration of Battery Management System (BMS) parameters and customized charging control strategies.
  • Triggers an intelligent alarm promptly when the system encounters abnormal operating conditions, ensuring timely fault detection.
  • Offers an optional data communication module to enable remote monitoring and management of the equipment.
  • Built-in intelligent cooling system maintains optimal operating temperatures, guaranteeing continuous and stable equipment performance.
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 2
Wind generator parameters:
Generator power 1KW 2KW 3KW
Generator voltage 56VAC 56VAC /220VAC 56VAC /220VAC
Controller parameters:
Output voltage 0～85VDC 0～85VDC/0～380VDC
Brake type Limited rotation of generator by PWM
Brake voltage 60VAC(adjustable) 60VAC/260VAC (adjustable)
Manual brake YES
Voltage constant PWM limit voltage
Electrical parameters
Convert efficiency ≧93%
Consumption at standby ≤2W
Operating Temperature Range -25℃ ～ +60℃
Cooling Method Convection with double cooling fans
Ambient Humidity 0%～98% Non-condensing
Altitude [m] ≤2000
Noise [dBA] ＜40
General parameters:
Terminal Barrier terminal
LCD Display LCD (16X2characters,green backlight)
Display Language English
Data-transfer port RS232/RS485/RJ45/GPRS/WIFI/bluetooth/Zigbee
Protection class IP20 (indoor)
Mounting Wall mounting type
Main control dimension 380 *355 *150 (mm)
Main-device net weight 8.5 (KG)
Dump dimension 112*448*144(mm) 192*425*144(mm) 340*440*155(mm)
Dump-load net weight 4 (KG) 7 (KG) 10 (KG)
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 3
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 4
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 5
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 6


Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 7
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 8
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 9
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 10
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 11



Package details

Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 12
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 13
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 14
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 15
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
Grid-Tied wind and solar hybrid system controller 3KW 5KW – Compatible with Grid-Connected Wind Turbines 16
